Fitting Fabrication Machine ATLA2000 CNC 1200MM - 2000MM (48" IPS - 78" IPS)

Fitting Fabrication Machine ATLA2000 CNC 1200MM - 2000MM (48" IPS - 78" IPS)

Fitting Fabrication Machine ATLA2000 CNC 1200MM - 2000MM (48" IPS - 78" IPS)
Fitting Fabrication Machine ATLA2000 CNC 1200MM - 2000MM (48" IPS - 78" IPS)Fitting Fabrication Machine ATLA2000 CNC 1200MM - 2000MM (48" IPS - 78" IPS)Fitting Fabrication Machine ATLA2000 CNC 1200MM - 2000MM (48" IPS - 78" IPS)Fitting Fabrication Machine ATLA2000 CNC 1200MM - 2000MM (48" IPS - 78" IPS)Fitting Fabrication Machine ATLA2000 CNC 1200MM - 2000MM (48" IPS - 78" IPS)Fitting Fabrication Machine ATLA2000 CNC 1200MM - 2000MM (48" IPS - 78" IPS)
CategoriesFitting Fabrication Machines
BrandRIYANG
ModelATLA1200 CNC
CertificateCE, ISO9001
Packing MaterialPlywood Box
MOQ1set
Working Range in mm1200mm - 2000mm
Working Range in Inch48" IPS - 78" IPS
Fabricated Fitting TypeBend, Tee, Cross & Wye
Weldable MaterialsHDPE, PP, PVDF etc.
Fusion Welding Standard AppliedISO21307, DVS2207, ASTM F2620 etc.
FOB portShanghai
Terms of PaymentL/C, Western Union, T/T, Paypal
DownloadDownload pdf
Update TimeJul 19,2025
Detail Information

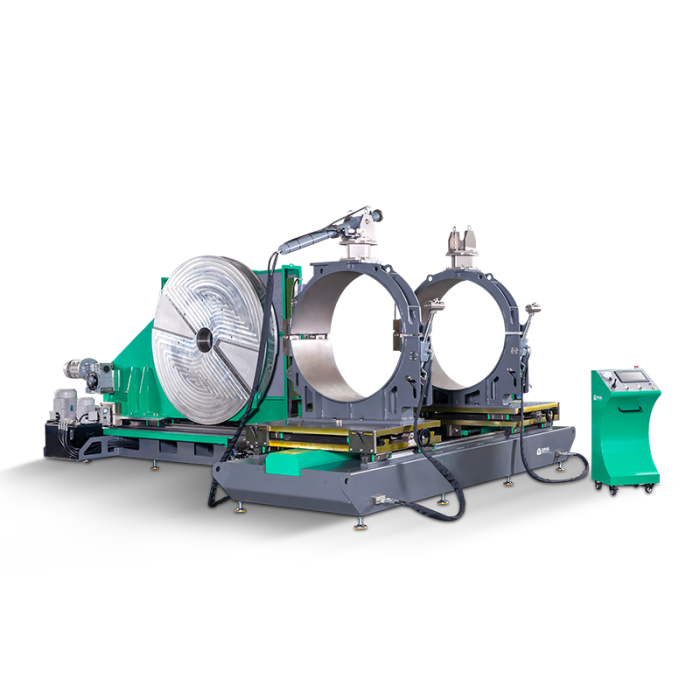

Fitting Fabrication Machine ATLA2000 CNC 1200MM-2000MM  (48" IPS - 78" IPS)
ATLA fitting fabrication machine is designed to fabricate fittings like elbows, tees crosses up to 2000mm,  and wyes up to 2000mm.

With the help of jaws, it could make different fittings of various sizes.

The ATLA2000 CNC welding machine could weld plastic materials like HDPE, PP, PVDF.
Product Details
ELBOWS
OD 1200MM - 2000MM
( 0º - 90º )
TEES & CROSSES
OD 1200MM - 2000MM
WYES ( *OPTION )
OD 1200MM - 2000MM
( 45º or 60º )
MATERIALS
HDPE - PP - PVDF
TOTAL POWER
160 KW
POWER SUPPLY
380VAC, 3 PHASE, 50/60HZ
ATLA1600CNC Fitting Fabrication Machine
Standard Composition

Featured by

- A machine body with two working tables, both driven by the hydraulic system;

- A operation panel with an automatic control system makes the whole welding process in a simple, efficient, and precise way. After setting the welding data (SDR, Pipe diameter, Standard requirement ), the welding machine will start welding automatically, so that the operators could mainly focus on the welding process, stay away from other interference. And the build-in memory could record the welding process and report it to the operator by transferring the data from operation panel to computer by USB connection, or automatically read out by connecting a printer;

- A milling cutter with hydraulic movement in/out, started by an electrical motor;

- A Teflon coated heating plate with hydraulic movement in/out;

- With a full set of aluminum inserts and steel clamps, which make fittings elbows, tees, and crosses.

- Wyes clamps φ2000 (45°and 60°): inserts from 1200mm to 1800mm
- Clamps for welding flange necks
- Imperial inserts
- Hydraulic open/close elbows clamp
- Hydraulic open/close tees and crosses clamp
- Hydraulic locking
