Fitting Fabrication Machine ATLA400 90MM - 400MM (4" IPS - 16" IPS)
Fitting Fabrication Machine ATLA400 90MM - 400MM (4" IPS - 16" IPS)





Detail Information

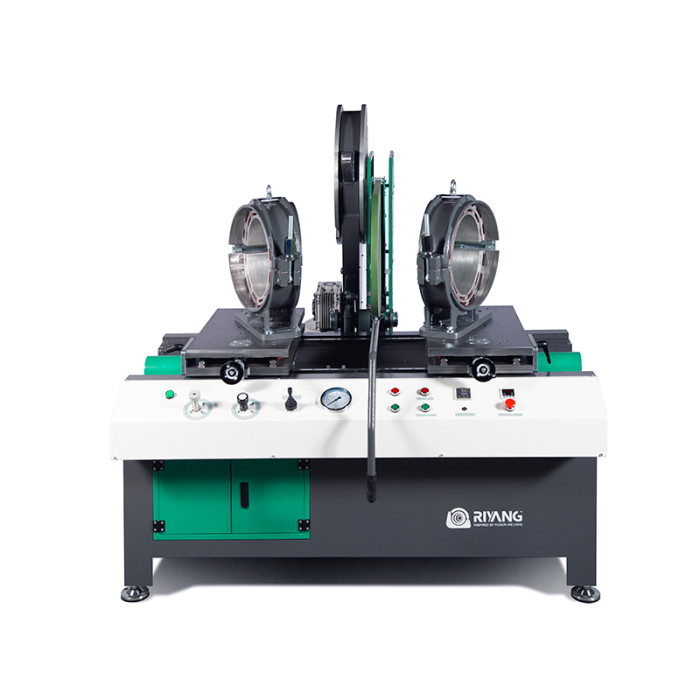

Fitting Fabrication Machine ATLA400 90MM-400MM
ATLA400 fitting fabrication machine is designed to fabricate fittings like elbows, tees, and crosses up to 400mm, wyes up to 315mm.
With the help of jaws, it could make different fittings of various sizes.
The ATLA400 welding machine could weld plastic materials like HDPE, PP, PVDF.
Product Details
|
|||
ELBOWS
|
OD 90MM - 400MM ( 0º - 90º )
|
TEES & CROSSES
|
OD 90MM - 400MM
|
WYES ( *OPTION ) | OD 90MM - 315MM ( 45º - 60º ) | MATERIALS | HDPE - PP - PPR - PVDF |
POWER SUPPLY | 12.3KW | PISTON AREA | 10.9CM2 |
POWER SUPPLY | 380VAC, 3 PHASE, 50/60HZ | TOTAL PACKAGES | 4 PLYWOOD CASES |
TOTAL WEIGHT (G.W.)
|
1744KG
|
MACHINE DIMENSION |
1350*1350*1370MM
|


Standard Composition
Featured by
- Basic machine completes with two carriages, both driven by the hydraulic system.
- Manual hydraulic control panel with all functional keys and buttons plane layout.
- Electrical trimmer with gear and safety microswitch.
- PTFE coated heating plate with a steel shield.
- Left and right elbow clamps φ315mm with a full set of aluminum inserts from φ90mm to φ280mm
- Left and right 90°Tees and Crosses clamps φ315mm with a full set of aluminum inserts from φ90mm to φ280mm

- 45°and 60° Wyes clamps φ315mm with full set of aluminum inserts from φ90mm to φ280mm.
- Stub end device
- Data logger
