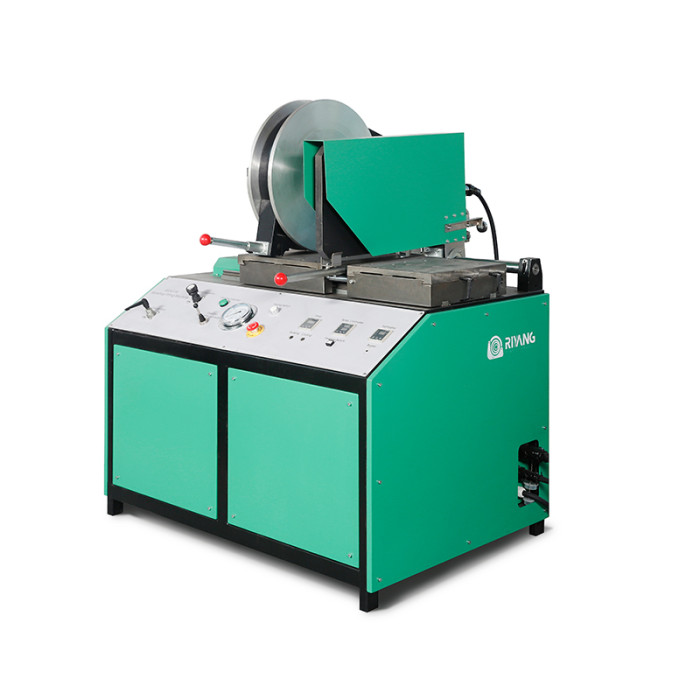

Fitting Fabrication Machine ATLA315E 90MM - 315MM (3" IPS - 12" IPS)

Fitting Fabrication Machine ATLA315E 90MM - 315MM (3" IPS - 12" IPS)

Fitting Fabrication Machine ATLA315E 90MM - 315MM (3" IPS - 12" IPS)
Fitting Fabrication Machine ATLA315E 90MM - 315MM (3" IPS - 12" IPS)Fitting Fabrication Machine ATLA315E 90MM - 315MM (3" IPS - 12" IPS)Fitting Fabrication Machine ATLA315E 90MM - 315MM (3" IPS - 12" IPS)
CategoriesFitting Fabrication Machines
BrandRIYANG
ModelATLA315E
CertificateCE, ISO9001
Packing MaterialPlywood Box
MOQ1set
Working Range in mm90mm - 315mm
Working Range in Inch3" IPS - 12" IPS
Fabricated Fitting TypeBend, Tee, Cross & Wye
Weldable MaterialsHDPE, PP, PVDF etc.
Fusion Welding Standard AppliedISO21307, DVS2207, ASTM F2620 etc.
FOB portShanghai
Terms of PaymentL/C, Western Union, T/T, Paypal
DownloadDownload pdf
Update TimeJul 19,2025
Detail Information
Fitting Fabrication Machine ATLA315E 90MM-315MM  (3" - 12"IPS)
ATLA315E fitting fabrication machine is designed to fabricate fittings like elbows, tees crosses, and wyes up to 315mm.

With the help of jaws, it could make different fittings of various sizes.

The ATLA315E fusion welding machine could weld plastic materials like HDPE, PP, PVDF.
Product Details
ELBOWS
OD 90MM - 315MM ( 0º - 90º )
TEES & CROSSES
OD 90MM - 315MM
WYES ( *OPTION )
OD 90MM - 315MM ( 45º - 60º )
MATERIALS
HDPE - PP - PPR - PVDF
RATED POWER
5.25KW
PISTON AREA
12.56
CM2
POWER SUPPLY
380VAC, 3 PHASE, 50/60HZ
TOTAL ABSOREBED  POWER
7.5KW
TOTAL WEIGHT (N.W./G.W.)
775KG / 942KG
MACHINE DIMENSION
1350*1350*1370MM
Standard Composition

Featured by

- Basic machine completes with two carriages, both driven by the hydraulic system.

- Manual hydraulic control panel with all functional keys and buttons plane layout.

- Electrical trimmer with gear and safety microswitch.

- PTFE coated heating plate with a steel shield.

- Left and right elbow clamps with a full set of aluminum inserts from φ90mm to φ315mm

- Left and right 45°  and 60° Wyes clamps with a full set of aluminum inserts from φ90mm to φ280mm

- 45°and 60° Wyes clamps φ315mm with full set of aluminum inserts from φ90mm to φ280mm.

- Stub end device

- Data logger
