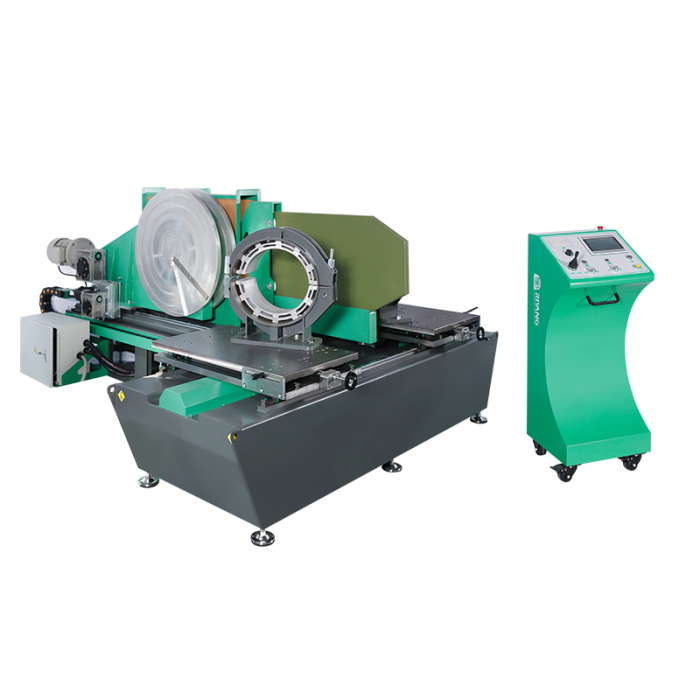

Fitting Fabrication Machine ATLA450 CNC 200MM - 450MM (8" IPS - 18" IPS)

Fitting Fabrication Machine ATLA450 CNC 200MM - 450MM (8" IPS - 18" IPS)

Fitting Fabrication Machine ATLA450 CNC 200MM - 450MM (8" IPS - 18" IPS)
Fitting Fabrication Machine ATLA450 CNC 200MM - 450MM (8" IPS - 18" IPS)Fitting Fabrication Machine ATLA450 CNC 200MM - 450MM (8" IPS - 18" IPS)Fitting Fabrication Machine ATLA450 CNC 200MM - 450MM (8" IPS - 18" IPS)Fitting Fabrication Machine ATLA450 CNC 200MM - 450MM (8" IPS - 18" IPS)Fitting Fabrication Machine ATLA450 CNC 200MM - 450MM (8" IPS - 18" IPS)
CategoriesFitting Fabrication Machines
BrandRIYANG
ModelATLA450 CNC
CertificateCE, ISO9001
Packing MaterialPlywood Box
MOQ1set
Working Range in mm200mm - 4500mm
Working Range in Inch8" IPS - 18" IPS
Fabricated Fitting TypeBend, Tee, Cross & Wye
Weldable MaterialsHDPE, PP, PVDF etc.
Fusion Welding Standard AppliedISO21307, DVS2207, ASTM F2620 etc.
FOB portShanghai
Terms of PaymentL/C, Western Union, T/T, Paypal
DownloadDownload pdf
Update TimeJul 21,2025
Detail Information

Overview


The ATLA450CNC is Riyang's flagship CNC-controlled HDPE fitting fabrication machine, engineered for precision and efficiency in fabricating medium-diameter thermoplastic fittings. Designed to handle pipe sizes ranging from 200mm to 450mm, this machine is ideal for producing elbows, tees, crosses, and wyes in HDPE, PP, and PVDF materials.
Technical Specifications
Welding Range in mm
200mm - 450mm
Welding Range in inch
8" IPS - 18" IPS
Fittings Types Fabricated
0°–90° (Elbow, Tee, Cross), 45°/60° (Wye)
Applicable Materials
HDPE, PP, PVDF
Control System
Manual or Automatic
Power Supply
380V, 50Hz
Total Power Consumption
18.4 kW
HDPE Fitting Fabrication Machine ATLA630CNC

Intelligent CNC Control System with IoT Integration


> Equipped with a fully automatic CNC control panel, the ATLA450CNC simplifies the entire welding process.
> Operators can set SDR, pipe diameter, and welding standards—after which the system executes welding process automatically.
> Built-in memory records every welding cycle and allows data export via USB or direct printing.
> Integrated IoT module supports remote diagnostics, software upgrades, and real-time technical assistance.

Servo Motor Technology and Cost-Effective Maintenance


> Both the heater and trimmer are powered by servo motors for precise, fast, and quiet movements.
> Patented insert-in heating element design allows replacing only the broken element instead of the whole heater—cutting down maintenance costs significantly.
> The high-strength trimmer plate features dual blades on one side, ensuring clean and efficient facing.
>The enhanced CNC program enables full welding traceability and a user-friendly interface.

Robust Mechanical Design and Global-Grade Components


> Heavy-duty machine frame, powder-coated for corrosion resistance.
> Core parts sourced from world-renowned suppliers, like Siemens, Wika, Schneider, Dupont etc.
> Backed by a industry leading 2-year warranty.

- Wyes clamps covering ranges φ200 to φ450 (45° & 60°)
- Stub flange holder
- Narrow clamps
- Hydraulic closing and opening clamps
- Hydraulic locking and unlocking clamps
- Top fasten cylinder
- Safety fence
