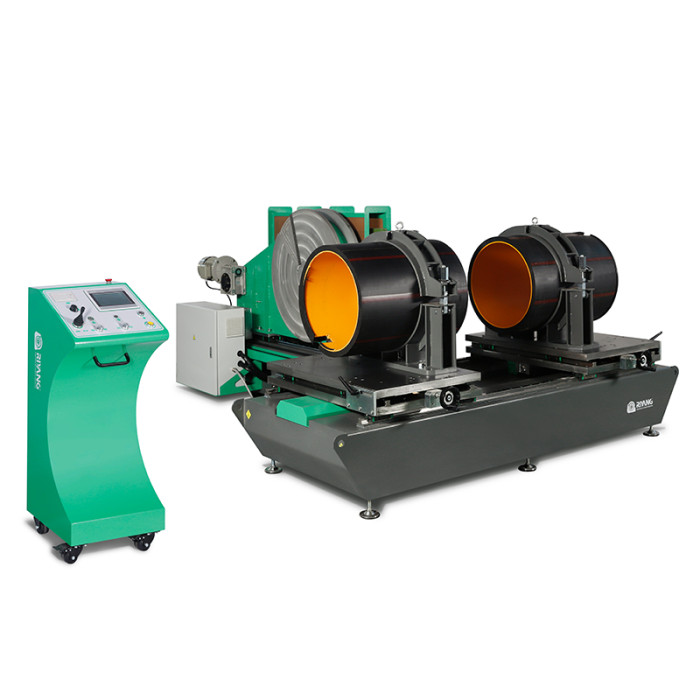

Fitting Fabrication Machine ATLA630 CNC 315MM - 630MM (12" IPS - 24" IPS)
Fitting Fabrication Machine ATLA630 CNC 315MM - 630MM (12" IPS - 24" IPS)






Categories | Fitting Fabrication Machines |
---|---|
Brand | RIYANG |
Model | ATLA630 CNC |
Certificate | CE, ISO9001 |
Packing Material | Plywood Box |
MOQ | 1set |
Working Range in mm | 315mm - 630mm |
Working Range in Inch | 12" IPS - 24" IPS |
Fabricated Fitting Type | Bend, Tee, Cross & Wye |
Weldable Materials | HDPE, PP, PVDF etc. |
Fusion Welding Standard Applied | ISO21307, DVS2207, ASTM F2620 etc. |
FOB port | Shanghai |
Terms of Payment | L/C, Western Union, T/T, Paypal |
Update Time | Jul 31,2025 |
Detail Information
Overview
The ATLA630CNC is Riyang's flagship CNC-controlled HDPE fitting fabrication machine, engineered for precision and efficiency in fabricating medium-diameter thermoplastic fittings. Designed to handle pipe sizes ranging from 315mm to 630mm, this machine is ideal for producing elbows, tees, crosses, and wyes in HDPE, PP, and PVDF materials.
Technical Specifications | |
Welding Range in mm | 315mm - 630mm |
Welding Range in inch | 12" IPS - 24" IPS |
Fittings Types Fabricated | 0°–90° (Elbow, Tee, Cross), 45°/60° (Wye) |
Applicable Materials | HDPE, PP, PVDF |
Control System | Manual or Automatic |
Power Supply | 380V, 50Hz |
Total Power Consumption | 34 kW |


Intelligent CNC Control System with IoT Integration
> Operators can set SDR, pipe diameter, and welding standards—after which the system executes welding process automatically.
> Built-in memory records every welding cycle and allows data export via USB or direct printing.
> Integrated IoT module supports remote diagnostics, software upgrades, and real-time technical assistance.
Servo Motor Technology and Cost-Effective Maintenance
> Both the heater and trimmer are powered by servo motors for precise, fast, and quiet movements.
> Patented insert-in heating element design allows replacing only the broken element instead of the whole heater—cutting down maintenance costs significantly.
> The high-strength trimmer plate features dual blades on one side, ensuring clean and efficient facing.
>The enhanced CNC program enables full welding traceability and a user-friendly interface.
Robust Mechanical Design and Global-Grade Components
> Heavy-duty machine frame, powder-coated for corrosion resistance.
> Core parts sourced from world-renowned suppliers, like Siemens, Wika, Schneider, Dupont etc.
> Backed by a industry leading 2-year warranty.

- Wyes clamps covering ranges φ315 to φ630 (45° & 60°)
- Stub flange holder
- Narrow clamps
- Hydraulic closing and opening clamps
- Hydraulic locking and unlocking clamps
- Top fasten cylinder
- Safety fence
