Detail Information

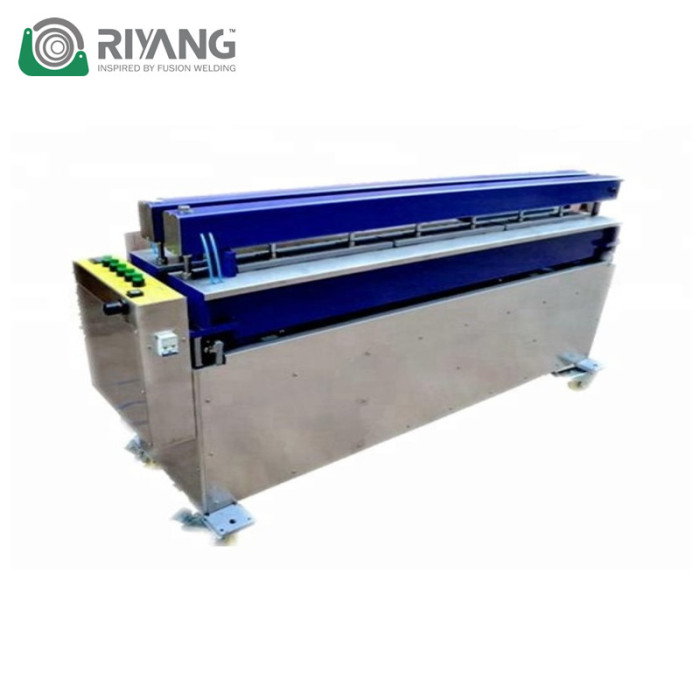

Plastic Sheet Welding Machine S-PH1500/2000
Product Details
MODEL
S-PH1500
S-PH2000
MACHINE LENGTH
1950MM
2600MM
MACHINE WIDTH
400MM
400MM
MACHINE HEIGHT
1000MM
1000MM
TOTAL WEIGHT
300KGS
600KGS
WELDING LENGTH
1500MM
2000MM
BENDING THICKNESS
3MM - 25MM
3MM - 25MM
MIN. DIA. OF PIPE
200MM
200MM
AIR PRESSURE
8.0BAR
8.0BAR
POWER SUPPLY
220/230/380/400 V
220/230/380/400 V
HEATING ELEMENT POWER
2.5KVA
3KVA
HEATING ELEMENT SIZE
1600x20x50 MM
2200x22x55 MM
WELDING MATERIALS
PP, PE, PVDF...
PP, PE, PVDF...
Featured by

- The new steel structure, mechanical synchronous transmission technology, through the regulator, in the weld area to achieve uniform pressure.

- All actions are cylinder drive, easy to operate, durable.

- Select specific welding pressure data according to the material, temperature.

- Sheet metal welding thickness 3mm-25mm.

- Manufacturing water tanks and containers

- Plastic devices

- Ventilation systems

- Water treatment systems

- Scrubber

- Environmental technology

- Swimming pool

- Transportation and logistics.
