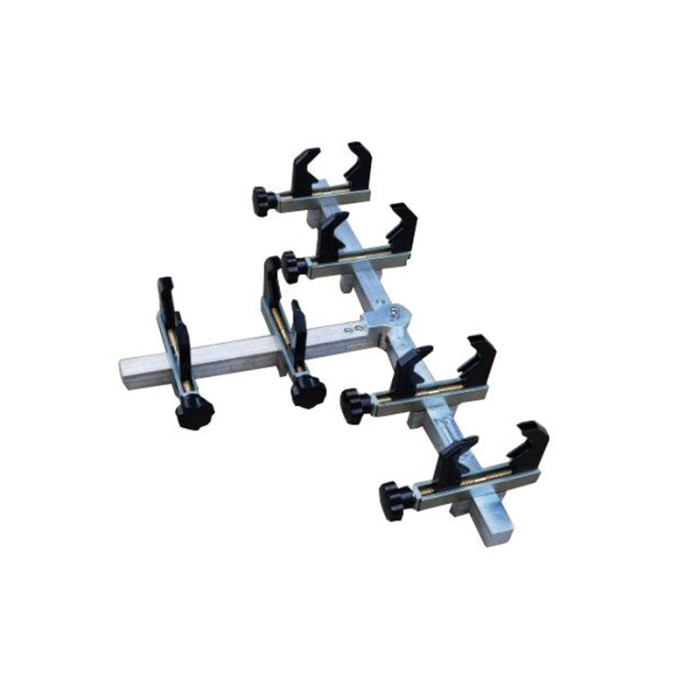

Pipe Alignment Tool ALIGNER 63&90
Detail Information
Pipe Alignment Tool ALIGNER series
ALIGNER 63&90 are used to hold pipes unmoved and aligned during electrofusion.
|
Product Details
|
||
|
MODEL
|
ALIGNER 63
|
ALIGNER 90
|
WORKING RANGE | 20MM - 63MM | 20MM - 90MM |
DIMENSIONS | 440x190x140 MM | 440x190x140 MM |
WEIGHT | 3.9KG | 4.5KG |
- Can be set on positions 90° and 45°
- Can be equipped with two or four V-shape clamps
- Special pipe fastening belts, a ratchet wrench is used to tighten up freely. Avoid stuck
- V-shape clamps can slide to a different position
