Pipe Alignment Tool ALIGNER 160LION/250LION

Pipe Alignment Tool ALIGNER 160LION/250LION

Pipe Alignment Tool ALIGNER 160LION/250LION
Pipe Alignment Tool ALIGNER 160LION/250LIONPipe Alignment Tool ALIGNER 160LION/250LIONPipe Alignment Tool ALIGNER 160LION/250LIONPipe Alignment Tool ALIGNER 160LION/250LION
CategoriesPipe Alignment Tools
BrandRIYANG
ModelALIGNER 160LION/250LION
CertificateCE, ISO9001
Packing MaterialAluminum Box
MOQ1set
FOB portShanghai
Terms of PaymentL/C, Western Union, T/T, Paypal
Update TimeJul 30,2025
Detail Information
Pipe Alignment Tool

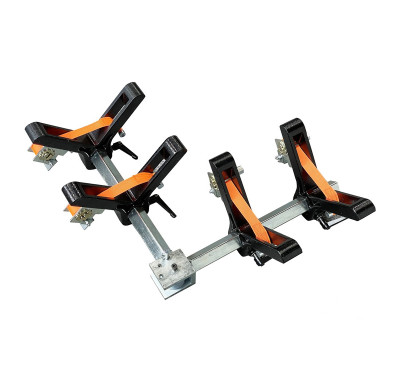

◆ The tool is entirely made of steel, featuring a central adjustable joint and pipe fastening clamps fixed on axes.

◆ The adjustable joint can be set on 4 different working positions to allow welding at preset angles such as 45°, 90°, “inline” and T welding.

◆ Axes have V-shaped clamps positioned on them, which are equipped with pipe fastening belts. The system, along with fixing the pipe to the clamp, serves also as a centering device.

◆ Each axis has 2 guides on which the clamps are able to slide.

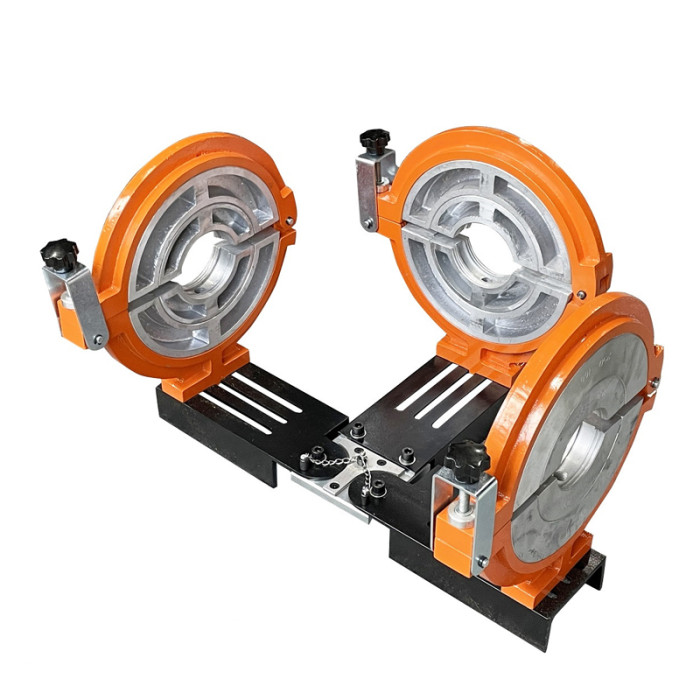

◆ The aligner is available in two configurations: 2 axes and 3 axes (to weld T fittings).
