Home / All / Butt Fusion Machine / ARMOR series /
Trailer Fusion Machine ARMOR 630i 200MM-630MM (8" IPS - 24'' IPS)
Trailer Fusion Machine ARMOR 630i 200MM-630MM (8" IPS - 24'' IPS)
| Categories | ARMOR series |
|---|---|
| Brand | RIYANG |
| Model | ARMOR 630i |
| Certificate | CE, ISO9001 |
| Packing Material | Plywood Box |
| MOQ | 1set |
| Working Range in MM | 200mm - 630mm |
| Working Range in Inch | 8 - 24Inch |
| Working Pressure Range | 0 - 180Bar |
| Welding Standard Applied | ASTM F2620-20, ISO 21307 SHP |
| FOB port | Shanghai |
| Terms of Payment | L/C, Western Union, T/T, Paypal |
| Update Time | May 31,2025 |
Detail Information

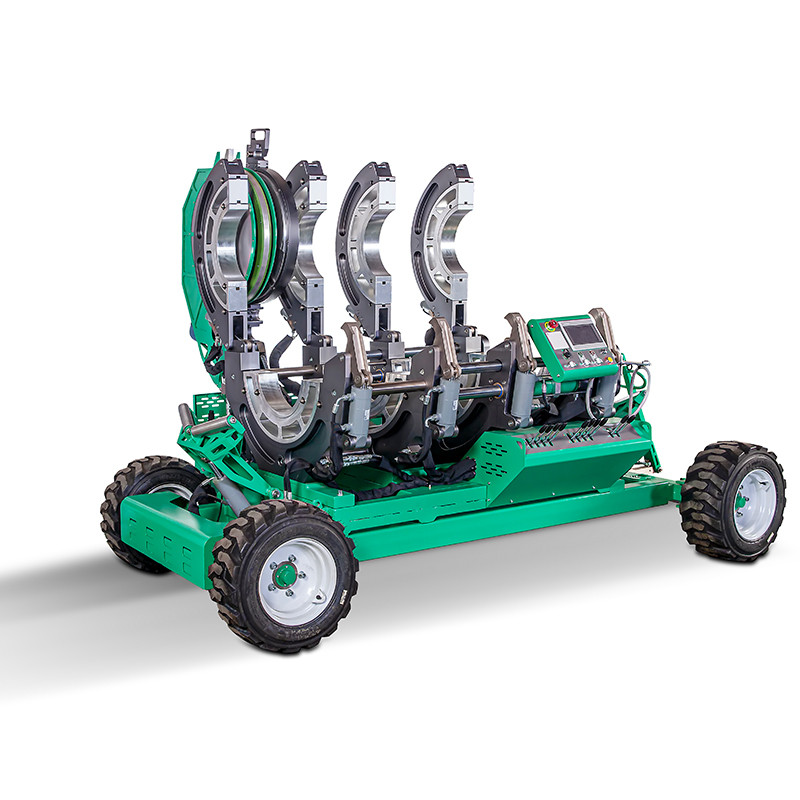

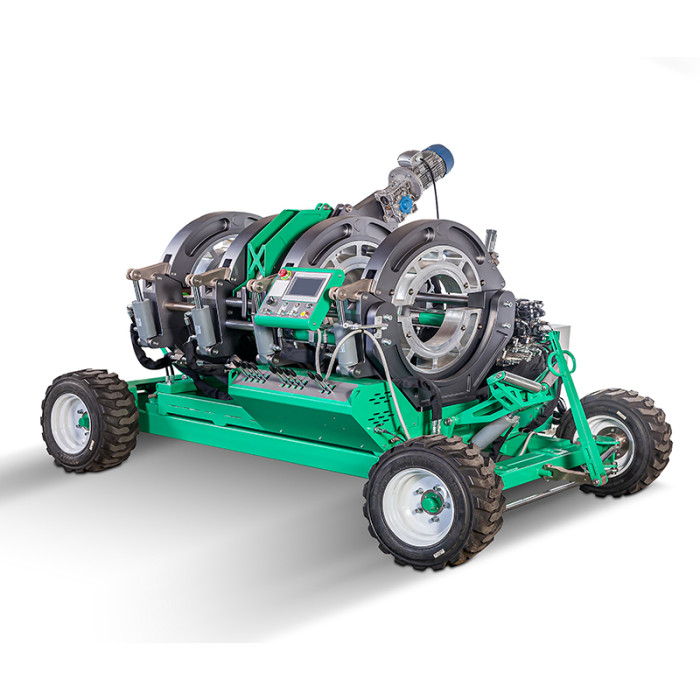

Trailer Butt Fusion Machine ARMOR 630i 200MM-630MM (8" IPS - 24'' IPS)
Riyang ARMOR 630i is a high-performance fusion welding machine with trailer mobility, designed to excel on construction sites.
It boasts a welding range from 200mm to 630mm or 8"IPS to 24"IPS, adhering to ISO21307 and ASTM F2620 high-force standards.
With a fully automated system featuring SIEMENS PLC technology, ARMOR 630i ensures precision and reliability.
Crafted from premium aluminum components, this machine guarantees strength and accuracy for all your welding needs.
|
Product Details
|
|
|
Models
|
|
902306630, ARMOR 630i 902306024, ARMOR 24i | Automatic, High Force, 220/380V, 50/60Hz, 3 Phase |
902307630, ARMOR 630 902307024, ARMOR 24 | Manual, High Force, 220/380V, 50/60Hz, 3 Phase |
|
Capacity
|
|
|
Welding Range
|
200mm-630mm, 8"IPS-24"IPS
|
Inserts Type | Quick Fit |
Power | |
Heater | 10 KW |
Trimmer | 1.5 KW |
Electric Motor | 3 KW |
Hydraulic | |
System Pressure | 180 Bar (2610 PSI) Max. |
Hydraulic Reservoir Capacity | 95 Liters (25 Gallons) |
Weight | |
Machine | 1750 Kg (3850 lbs.), excluding inserts |
Shipping | 2080 Kg (4576 lbs.), including inserts |
Chassis | |
Frame | Welded steel tube construction |
Front Axle | Linkage |
Tires | High-flotation inflatable tires |
Transportation | Pulled via towing ring |
Machine Carriage | Removable |
Dimension | |
Machine | 3000mm x 1625mm x 1790mm
118" x 64" x 70" |
Machine Carriage | 1680mm x 1150mm x 1080mm
66" x 45" x 42" |
Shipping | 3000mm x 1625mm x 1790mm
118" x 64" x 70" |
Optional Configuration | |
Inserts | √ |
Stub End Device | √ |
Mobile Support Roller | √ |
Data Logger | Compatible with manual version |
•The dual-axis structural frame ensures strength
and even distribution of welding force
•On-board heating plate with protection
frame and insulated shield
•On-board high-capacity trimmer driven by
electric power
•Removable machine chassis for in-ditch use
•Removable trimmer for welding short spigot
• ISO inserts with quick
install/release system
• Strong jaws and inserts keep the pipe from
slipping during fusion
•Hydraulic pipe lift used to loading and
unload pipe
•Data logger (PEWELDBANK) is compatible
(manual version)
• Removable control panel with
data-logging, memory of up to 30000 welding reports; USB port for welding data
download/firmware upgrade
• Easy welding procedure achieved by
operator just pressing the button
