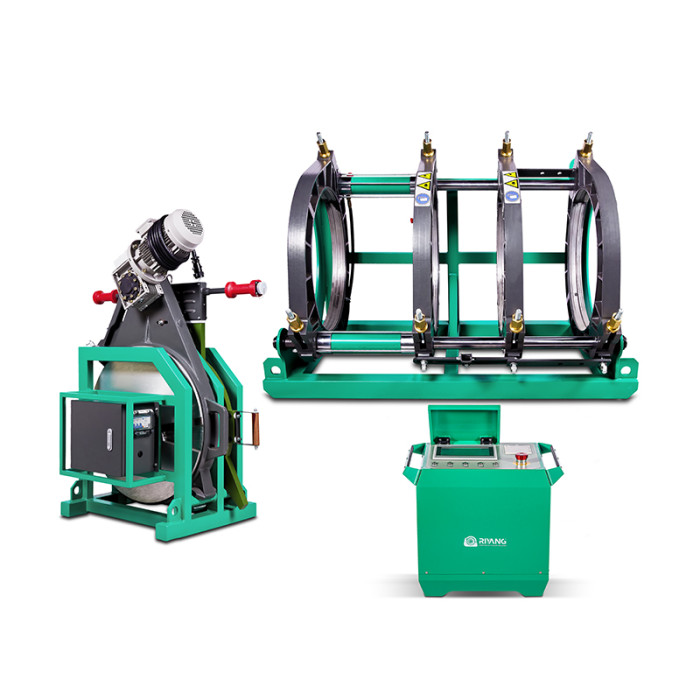

Automatic Butt Fusion Machine V630CNC20 315MM-630MM (12"IPS - 24''IPS)

Automatic Butt Fusion Machine V630CNC20 315MM-630MM (12"IPS - 24''IPS)

Automatic Butt Fusion Machine V630CNC20 315MM-630MM (12"IPS - 24''IPS)
Automatic Butt Fusion Machine V630CNC20 315MM-630MM (12"IPS - 24''IPS)Automatic Butt Fusion Machine V630CNC20 315MM-630MM (12"IPS - 24''IPS)Automatic Butt Fusion Machine V630CNC20 315MM-630MM (12"IPS - 24''IPS)Automatic Butt Fusion Machine V630CNC20 315MM-630MM (12"IPS - 24''IPS)
CategoriesAutomatic Butt Fusion Machines
BrandRIYANG
ModelV630 CNC
CertificateCE, ISO9001
Packing MaterialPlywood Box
MOQ1set
Working Range in mm315mm - 630mm
Working Range in inch12" - 24"IPS
Working Pressure Range0 -120Bar
Fusion Welding Standard AppliedISO21307, DVS2207 etc
Operation TypeAutomatic
FOB portShanghai
Terms of PaymentL/C, Western Union, T/T, Paypal
DownloadDownload pdf
Update TimeJun 24,2025
Detail Information
Hydraulic Butt Fusion Machine V630CNC20 315MM-630MM (12" IPS -24'' IPS)
The RIYANG CNC2.0 is a premium, high-stability automatic butt fusion machine powered by a Siemens PLC. It is manufactured to meet rigorous standards including ISO 12176-1 for butt-fusion welding of thermoplastic pipes and the EU Machinery Directive 2006/42/EC.
The system supports pre-programmed welding standards conforming to major industry standards such as DVS, ISO, and ASTM. Custom standards can be incorporated on demand.
Welding records can be exported via USB, saved as PDF, and key parameters (time, operator, standard, welding result) can be printed on adhesive labels for on-site traceability. The machine’s memory supports storing up to 10,000 weld logs.
During welding, the system provides real-time alerts if key parameters—voltage, temperature, or pressure—are outside specified ranges, enabling immediate corrective action and maximizing weld integrity.
Welding parameters can be tailored to specific pipe materials and ambient conditions, enhancing flexibility and ensuring optimal weld results under varied conditions.
Backed by a 2-year industry-leading warranty.
Product Details
Welding Range O.D. (mm)
315mm - 630mm
Welding Range O.D. (inch)
12" IPS - 24'' IPS
Power Supply
380V±10%, 50/60HZ
Temperature Range
Max. 280ºC
Heater Power
9.3 kW
Packing Dimension
1600*1130*1100 mm
Trimmer Power
1.5 kW
1030*720*1350 mm
Pump Power
1.5 kW
800*350*400 mm
Working Pressure Range
0 - 120 Bar
Gross Weight
739KGS
Integrated User Interface

Features a unified control panel that enhances operator efficiency and minimizes errors. Mechanical push-buttons are accompanied by status indicator lights, allowing real-time monitoring of the machine's operating status.
Versatile Control Box

One control box is compatible with machine models 450, 500 and 630, enabling significant cost savings for users. It also allows for easy upgrades from manual to automatic configurations.
Effortless Drag Pressure with Just One Click

Achieve precise drag pressure effortlessly with a single click, streamlining the welding process and improving operational efficiency.

Remote Diagnostics & Firmware Upgrades

The system supports remote troubleshooting and OTA software updates, allowing technical teams to identify and resolve issues without the need for on-site service.
