Automatic Butt Fusion Machine V315 CNC 90MM-315MM (3" IPS -10" IPS)

Automatic Butt Fusion Machine V315 CNC 90MM-315MM (3" IPS -10" IPS)

Automatic Butt Fusion Machine V315 CNC 90MM-315MM (3" IPS -10" IPS)
Automatic Butt Fusion Machine V315 CNC 90MM-315MM (3" IPS -10" IPS)Automatic Butt Fusion Machine V315 CNC 90MM-315MM (3" IPS -10" IPS)Automatic Butt Fusion Machine V315 CNC 90MM-315MM (3" IPS -10" IPS)Automatic Butt Fusion Machine V315 CNC 90MM-315MM (3" IPS -10" IPS)Automatic Butt Fusion Machine V315 CNC 90MM-315MM (3" IPS -10" IPS)
CategoriesAutomatic Butt Fusion Machines
BrandRIYANG
ModelV315 CNC
CertificateCE, ISO9001
Packing MaterialPlywood Box
MOQ1set
Range in inch3
FOB portShanghai
Terms of PaymentL/C, Western Union, T/T, Paypal
Download
Update TimeDec 8,2024
Detail Information

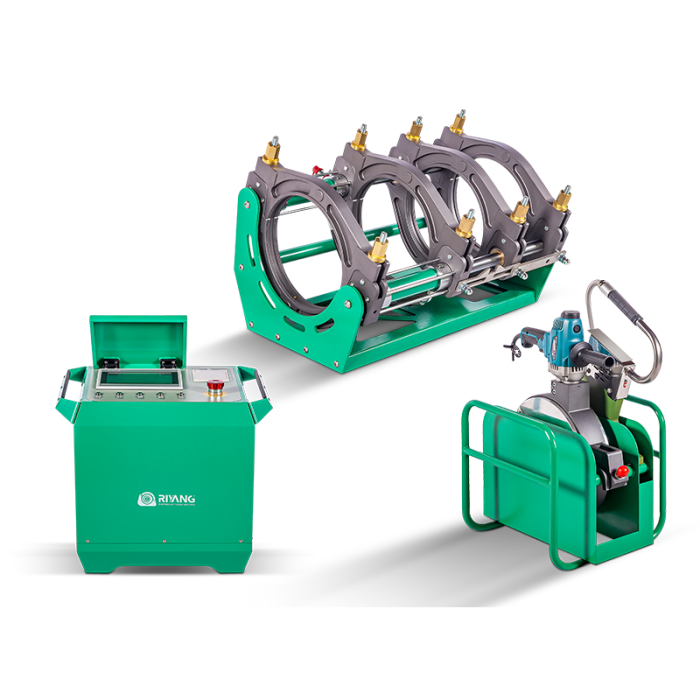

Automatic Butt Fusion Machine V315 CNC 90MM-315MM (3" IPS -10" IPS)
The RIYANG V-CNC series automatic hydraulic butt welding machine V315 CNC is applied to joint PE, PP, PPR and PVDF pipes and moulded fittings.

Selection of components with a long service life ensures a low maintenance and repair, friendly and reliable operation.
Product Details
WELDING RANGE O.D.
90MM - 315MM
PISTON AREA
20.02 cm²
POWER SUPPLY
*220V±10%, 50/60HZ
TEMPERATURE RANGE
MAX. 320ºC
HEATER POWER
3.0KW
PACKING DIMENSION
930*620*630 MM
TRIMMER POWER
1.5KW
630*600*730 MM
PUMP POWER
0.75KW
650*340*380 MM
WORKING PRESSURE RANGE
0 - 80 BAR
GROSS WEIGHT
241KGS
V-CNC series Characteristics
WELDING CONTROL SYSTEM
FULLY MONITORED BY CNC CONTROL UNIT
DATA LOGGING CAPACITY
2000 REPORTS
WELDING MONITORING SYSTEM
AMBIENT TEMPERATURE, INPUT VOLTAGE, HEATING TEMPERATURE, WELDING PRESSURE, WELDING TIMES, HEATING OPERATION, TRIMMING OPERATION, MEMORY CONTROL
WELDING STANDARD
DVS, ISO, WIS, UNI AND OTHERS UPON REQUEST
LANGUAGES
AVAILABLE UPON REQUEST
WARRANTY PERIOD
2 YEARS
Basic Frame

Featured by

- Oil seal kit, origins from Germany, make sure that the pressure performance stays in a more stable way.

- 4sets quick coupling helps the operator to prepare the machine better before and after welding, and we use STUCCHI which from Italy ensures no hydraulic oil leakages when unplug or plug in.

- Using an integral shaft (top chromate treatment) instead of the assembled shaft, ensure the chassis strength to avoid possible frame twist or deform when dragging the pipe with extreme parameters.
Heating Plate

Featured by

- We use Dupont from the USA for coating the heating plate, which is the best in the industry. It's many stickers on an aluminum plate, more non-sticky to plastic pipes surface. The temperature deviation of different points on the heating plate is 2-3 degrees (small size machine) and 5-6 degrees (big size machine).

Trimmer

Featured by

- Safety Switch, which guarantees the operators' security, even with power on, the trimmer will not be running if operators do not press the button.

Support

Featured by

- Ergonomic design
V-CNC Series

Featured by

- The CNC hydraulic control box is available for all RIYANG basic model machines, covering the size from O.D 50mm through O.D 1200mm. A fully encased control box makes the protection level up to IP 54.

- Due to the unique powertrain, it could not only create sufficient hydraulic power during the welding procedure but also makes sure precise control. And most importantly, it greatly reduces the weight of the control box. And the servo-motor applied significantly reduces the failure possibility and maintenance cost.

- All connection sockets are located at the back of the hydraulic control unit, including sockets for the trimmer tool and heating plate. No additional power distributor is needed.

- Various welding standards (DVS, ISO, WIS, etc.) could be pre-installed by different languages upon your request. All welding reports could be saved immediately to internal memory with a capacity of 2000 reports after welding accomplished, or print the report. Meanwhile, it is available for downloading through the USB interface.

- All RIYANG V-CNC series hydraulic control box is featured with PLC touch screen, extremely user-friendly RFID access technology. Troubleshooting and program upgrades are available for remote control.

- When the heating plate hooks up with the machine chassis, inserting or release the heater will be controlled remotely by a hydraulic unit, which is the same as a trimmer. These characteristics prevent the operators from being injured.

Data Logger
Aluminum Stub End Holder
Roller Support
Inserts
