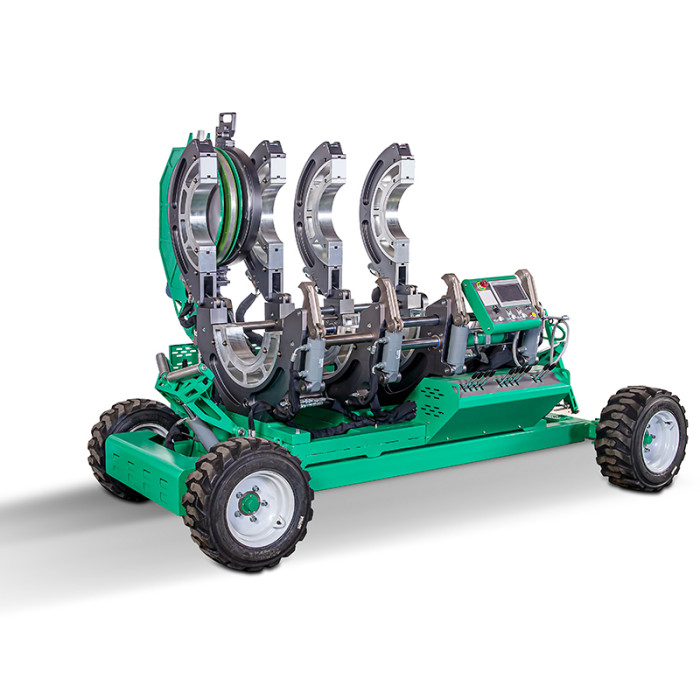

Trailer Fusion Machine ARMOR 1000i 500MM-1000MM (20" IPS - 36'' IPS)






Detail Information
Trailer Butt Fusion Machine ARMOR 1000i 500MM-1000MM (20" IPS - 36'' IPS)
Riyang ARMOR 1000i is a high-performance fusion welding machine with trailer mobility, designed to excel on construction sites.
It boasts a welding range from 500mm to 1000mm or 20"IPS to 36"IPS, adhering to ISO21307 and ASTM F2620 high-force standards.
With a fully automated system featuring SIEMENS PLC technology, ARMOR 1000i ensures precision and reliability.
Crafted from premium aluminum components, this machine guarantees strength and accuracy for all your welding needs.
|
Product Details
|
|
|
Models
|
|
902306102, ARMOR 1000i 902306036, ARMOR 36i | Automatic, High Force, 220/380V, 50/60Hz, 3 Phase |
902307102, ARMOR 1000 902307036, ARMOR 36 | Manual, High Force, 220/380V, 50/60Hz, 3 Phase |
|
Capacity
|
|
|
Welding Range
|
500mm - 1000mm, 20"IPS - 36"IPS
|
Power | |
Heater | 17.5 KW |
Trimmer | 3 KW |
Electric Motor | 7.5 KW |
Hydraulic | |
System Pressure | 180 Bar (2610 PSI) Max. |
Hydraulic Reservoir Capacity | 28 Liters (7.4 Gallons) |
Weight | |
Machine | 4100 Kg (9020 lbs.), including inserts |
Shipping | 4100 Kg (9020 lbs.), including inserts |
Chassis | |
Frame | Welded steel tube construction |
Front Axle | Linkage |
Tires | High-flotation inflatable tires |
Transportation | Pulled via towing ring |
Machine Carriage | Removable |
Dimension | |
Machine | 3800mm x 2200mm x 2390mm
150" x 87" x 94" |
Machine Carriage | 2600mm x 2200mm x 1760mm
102" x 87" x 69.3" |
Shipping | 3800mm x 2200mm x 2390mm
150" x 87" x 94" |
Optional Configuration | |
Inserts | √ |
Stub End Device | √ |
Mobile Support Roller | √ |
Data Logger | Compatible with manual version |
•The dual-axis structural frame ensures strength
and even distribution of welding force
•On-board heating plate with protection
frame and insulated shield
•On-board high-capacity trimmer driven by
electric power
•Removable machine chassis for in-ditch use
•Removable trimmer for welding short spigot
• ISO inserts with quick
install/release system
• Strong jaws and inserts keep the pipe from
slipping during fusion
•Hydraulic pipe lift used to loading and
unload pipe
•Data logger (PEWELDBANK) is compatible
(manual version)
• Removable control panel with
data-logging, memory of up to 30000 welding reports; USB port for welding data
download/firmware upgrade
• Easy welding procedure achieved by
operator just pressing the button
