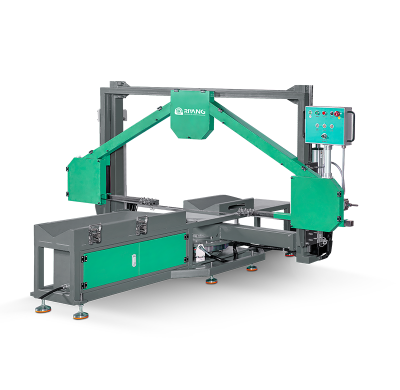

Pipe Band Saw TPS800 200mm-800mm (8" IPS - 32" IPS)
Pipe Band Saw TPS800 200mm-800mm (8" IPS - 32" IPS)
| Categories | Pipe Band Saws |
|---|---|
| Brand | RIYANG |
| Model | TPS630 |
| Certificate | CE, ISO9001 |
| Packing Material | Plywood Pallet |
| MOQ | 1set |
| Working Range in mm | 200 mm - 800 mm |
| Working Range in Inch | 8" IPS - 32" IPS |
| Cutting Angle Range | -45° - 67.5° |
| FOB port | Shanghai |
| Terms of Payment | L/C, Western Union, T/T, Paypal |
| Update Time | Jul 25,2025 |
Detail Information
Overview
TPS800 is a electric workshop band saw for thermoplastic material(HDPE, PP, PVDF, PPR, PVC) pipes from 200mm to 800mm diameter. Thanks to the slewing bearings, the machine body can be easily moved manually. And the cutting angle is adjustable with precision from -45° to 67.5°. It could work ideally with an ATLA fittings fabrication machine for various kinds of fittings.
The equipment is provided with a mobile control panel, which gives the chance to the operator work at a safe distance from the cutting area. By the control panel, the operator can control the automatic movement of the saw (up/down) and also regulate the cutting speed.
The pipe to be cut is held by heavy-duty tie-down straps. Clamping the pipes in this manual way could avoid the risk of pipe loosing during the cutting progress.
|
Product Parameter
|
|||
|
Cutting Range
|
OD 200 mm - 800 mm
|
Max. Cutting Angle
|
67.5º
|
Power Supply | 380 V, 3 P, 50/60 hz | Materials | HDPE, PP, PVDF, PPR, PVC |
Rated Power | 3.7 kW | Cutting Angle Error | ≤1° |
Line Speed | 0 - 255 m/min | Feeding Speed | Adjustable |
|
Footprint
|
400 cm * 400 cm
|
Net Weight |
1600 kgs
|
Standard Composition
- Pipe supporting bed
- Straps used to clamp the main pipes
- Control panel with emergency stop
- Laser cut detection
- Special saw blade available for thick walled pipe
- Pipe support
On Request
＋Automatic angle adjustment
＋Hydraulically clamping pipes
＋Automatically adjusting saw band guide
＋Automatically feeding pipes
Highlight Features
No hydraulic Oil
A machine driven solely by electric cylinders, without hydraulic cylinders, eliminates the worries of oil leaking and need for hydraulic oil replacement, resulting in cleaner operation, lower maintenance, and improved energy efficiency.

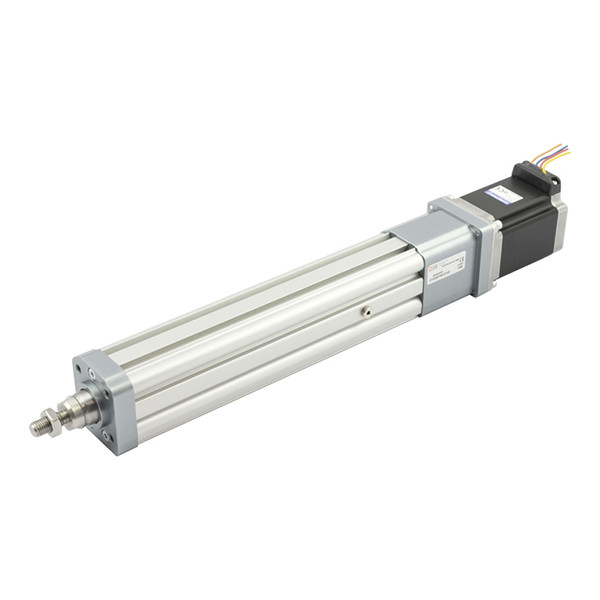

Electric Cylinder
The electric cylinder facilitates high-speed, smooth movement of the saw carriage, significantly boosting travel speed and synchronizing accuracy while reducing operating noise, thereby enhancing overall equipment efficiency and creating a more comfortable work environment.
- 45° - 67.5°
This HDPE pipe cutting saw is engineered for efficiency and precision. It allows angle cutting from -45° to 67.5° simply by rotating the saw blade housing—no need to reposition the pipe. This greatly enhances cutting efficiency, especially when fabricating fittings such as WYE joints, making the operation faster, easier, and more labor-saving.
