Pipe Band Saw TPS400 90mm-400mm (3" IPS - 16" IPS)
Pipe Band Saw TPS400 90mm-400mm (3" IPS - 16" IPS)
| Categories | Pipe Band Saws |
|---|---|
| Brand | RIYANG |
| Model | TPS400 |
| Certificate | CE, ISO9001 |
| Packing Material | Plywood Box |
| MOQ | 1set |
| Working Range in mm | 90mm - 400mm |
| Working Range in Inch | 3" IPS - 16" IPS |
| Cutting Angle Range | -45° - 67.5° |
| FOB port | Shanghai |
| Terms of Payment | L/C, Western Union, T/T, Paypal |
| Download |  |
| Update Time | Jul 19,2025 |
Detail Information

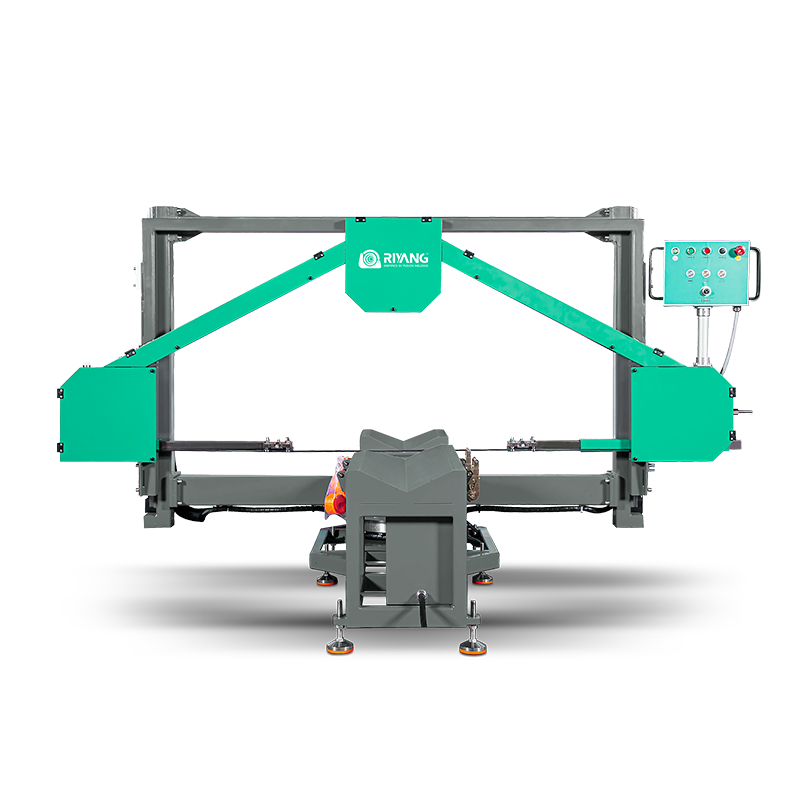

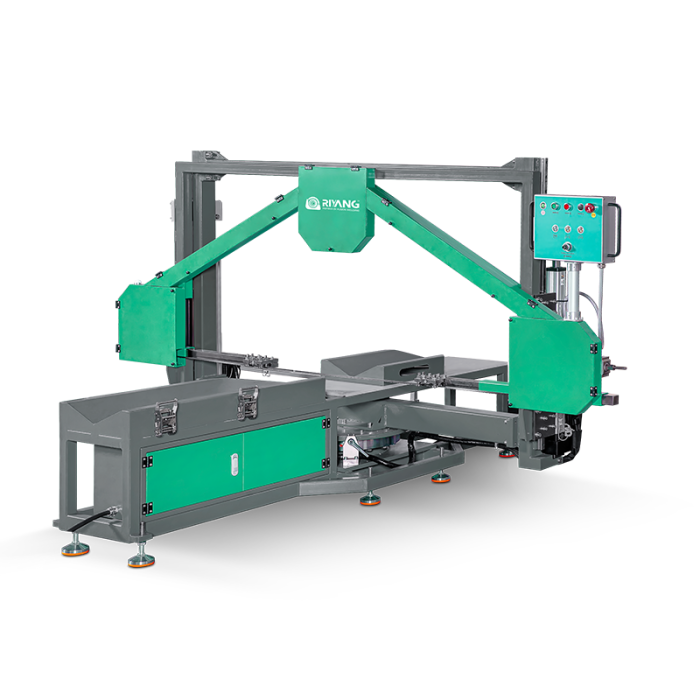

PE Pipe Band Saw TPS400 90mm - 400mm (3" - 16" IPS)
TPS400 is a hydraulic workshop band saw for thermoplastic material(HDPE, PP, PVDF, PPR, PVC) pipes from 90mm - 400mm diameter. Thanks to the slewing bearings, the machine body can be easily moved manually. And the cutting angle is adjustable with precision from -45°to 67.5°. It could work ideally with an ATLA400 fittings fabrication machine for various kinds of fittings.
The equipment is provided with a mobile control panel, which gives the chance to the operator to work at a safe distance from the cutting area. By the control panel, the operator can control the automatic movement of the saw (up/down) and also regulate the cutting speed.
The pipe to be cut is held by heavy-duty tie-down straps. Clamping the pipes in this manual way could avoid the risk of pipe loosing during the cutting progress.
|
Product Details
|
|||
|
CUTTING RANGE
|
OD 90MM - 400MM
|
MAX. CUTTING ANGLE
|
67.5º
|
POWER SUPPLY | 380VAC, 3 PHASE, 50/60HZ | MATERIALS | HDPE - PP - PPR - PVDF - PVC |
RATED POWER | 2.5KW | CUTTING ANGLE ERROR | ≤1° |
LINE SPEED | 0 - 255M/MIN | FEED SPEED | ADJUSTABLE |
|
SPACE OCCUPATION
|
560CM * 560CM
|
NET WEIGHT |
880KGS
|
Standard Composition
Featured by
- Cutting -45° - 67.5°
- Pipe supporting stand
- Control panel
- Saw body
- Clamping belt
- Automatic Angle Positioning
