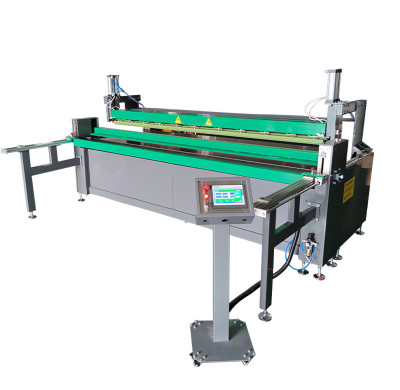

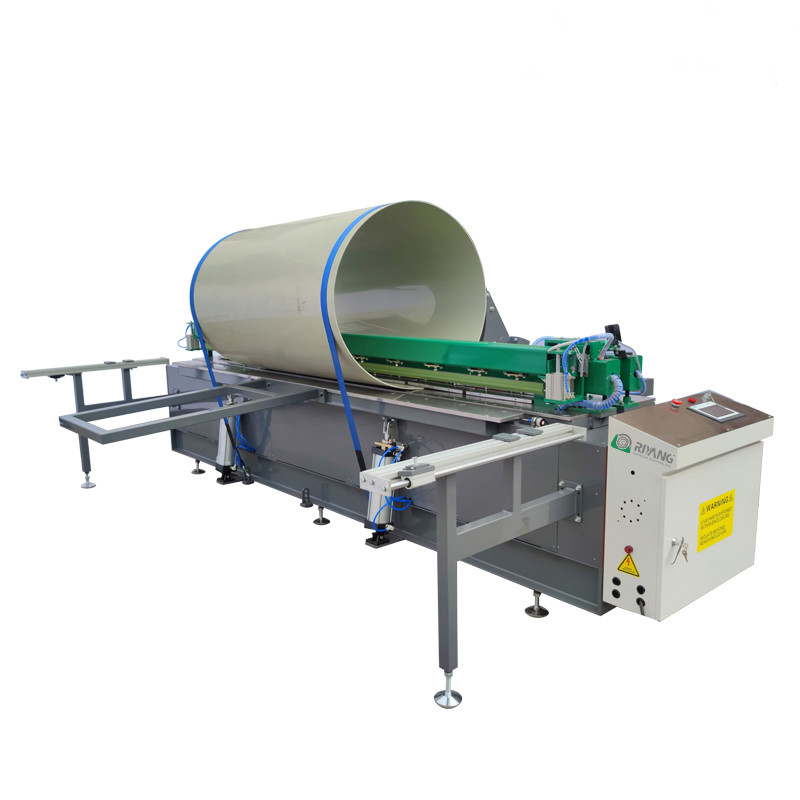

Plastic Sheet Butt Fusion & Bending Welding Machine RPZ Series
Plastic Sheet Butt Fusion & Bending Welding Machine RPZ Series




Categories | Plastic Sheet Welding Machines |
---|---|
Brand | RIYANG |
Model | RPZ1500, RPZ2000, RPZ3000, RPZ4000, RPZ4500, RPZ5000, RPZ6000 |
Certificate | CE, ISO9001 |
Packing Material | Plywood Box |
MOQ | 1set |
FOB port | Shanghai |
Terms of Payment | L/C, Western Union, T/T, Paypal |
Update Time | Jul 31,2025 |
Detail Information
Plastic Sheet Butt Fusion & Bending Welding Machine RPZ Series
Product Details
|
|||||||||||||||||
MODEL
|
RPZ1500
|
RPZ2000
|
RPZ3000 | RPZ4000 | RPZ4500 | RPZ5000 | RPZ6000 | ||||||||||
MAX. WORKING LENGTH | 1500MM | 2000MM | 3000MM | 4000MM | 4500MM | 5000MM | 6000MM | ||||||||||
SHEET THICKNESS | 3-20MM | 3-25MM | 3-25MM | 3-30MM | 3-30MM | 3-30MM | 3-30MM | ||||||||||
PRESSURE SETTING METHOD | DIGITAL | DIGITAL | DIGITAL | DIGITAL | DIGITAL | DIGITAL | DIGITAL | ||||||||||
PRESSURE
CONTROLLER |
SMC ELECTRIC
PROPORTIONAL VALVE |
SMC ELECTRIC PROPORTIONAL VALVE |
SMC ELECTRIC PROPORTIONAL VALVE | SMC ELECTRIC PROPORTIONAL VALVE | SMC ELECTRIC PROPORTIONAL VALVE | SMC ELECTRIC PROPORTIONAL VALVE | SMC ELECTRIC PROPORTIONAL VALVE | ||||||||||
BENDING LENGTH | 1500MM | 2000MM | 3000MM | 4000MM | 4500MM | 5000MM | 6000MM | ||||||||||
BENDING THICKNESS | 3-15MM | 3-20MM | 3-25MM | 3-25MM | 3-25MM | 3-30MM | 3-30MM | ||||||||||
POWER CONSUMPTION | 3KW | 4KW | 6KW | 9KW | 9KW | 10KW | 12KW | ||||||||||
COMPRESSED AIR CONNECTION (bar) | 6-8 KG/CM2 | ||||||||||||||||
SHEET LOCKING CLAMPS | PNEUMATIC | ||||||||||||||||
WELDING SYSTEM | CNC |


Featured by
- Our patented design, plastic sheet bending, and welding integrated machine.
- Bending angle adjustable 0-95 °. suitable for all types of thermo plastic sheet (PP-R, PP-H, PP-B, PP-S, HD-PE, PVC-U, PVC-RL, PVDF…)
- The new steel structure, patented mechanical synchronous drive technology, through the proportional valve, in the weld area to achieve uniform pressure.
- Control system Mitsubishi PLC, 7-inch color touch screen.
- Data parameters are automatically selected according to the material a particular welding pressure, temperature, and time.
- 3mm-30mm welding capabilities, special welding thickness up to 40mm, 60mm.
3mm-25mm bending capability.
