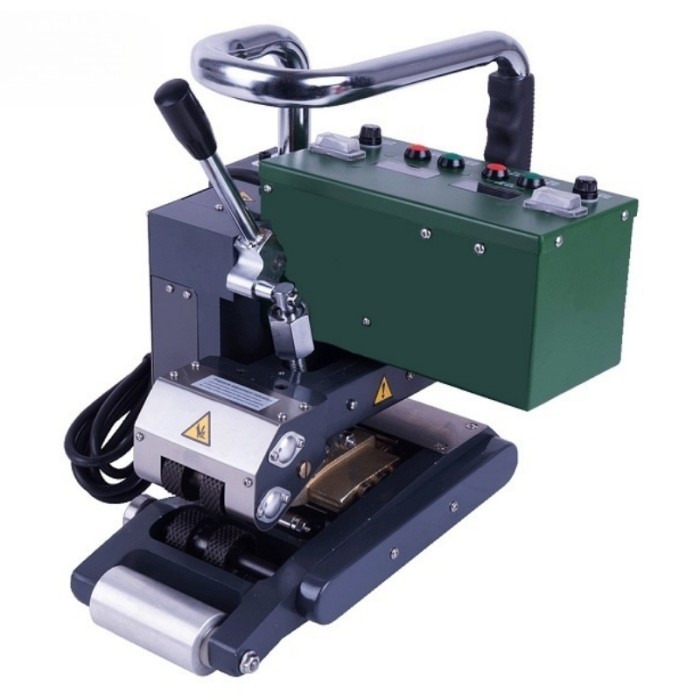

Geomembrane Hot Air Welder RYG900D
Geomembrane Hot Air Welder RYG900D adopts an advanced hot wedge structure. With its high power, high speed, and pressure, it welds 1.0 - 3.0mm thickness hot melting materials such as HDPE, LDPE, PVC, EVA, ECB, PP, and others.

This machine is specially designed for water conservancy, aquaculture, landfills, chemical mining, sewage treatment, roof constructions, and other waterproofing projects.
Product Details
VOLTAGE
220V, 50/60HZ
POWER
1800W
WELDING SPEED
0.5 - 5M/MIN ADJUSTABLE
HEATING TEMPERATURE
20
 - 450
 ADJUSTABLE
MATERIAL THICKNESS WELDED
1.0MM - 3.0MM (SINGLE LAYER)
OVERLAP WIDTH
12CM
SEAM WIDTH
15MM*2, INTERIOR CAVITY 15MM
SEAM STRENGTH
≥ 85% MATERIALS
NET WEIGHT
13KGS
DIGITAL DISPLAY
TEMPERATURE AND SPEED DISPLAY
Control System
Advanced intelligent digital control system.
Drive System
High power and torque motor combined with double precise driving motion
Pressure Adjustment System
Advanced "T" style jib design and pressure regulation structure
Pressure Roller
Special stainless steel pressure rollers with a strong pressure force
Heating System
Powerful metal hot wedge and special heating system design
    - Railway/ highway subway tunnel waterproof construction;

    - Water conservancy projects, man-made landscape;

    - Riverbank, aquaculture farm;

    - Refuse landfill, sewage treatment;

    - Chemical, mining industry;

    - Construction waterproofing projects.
