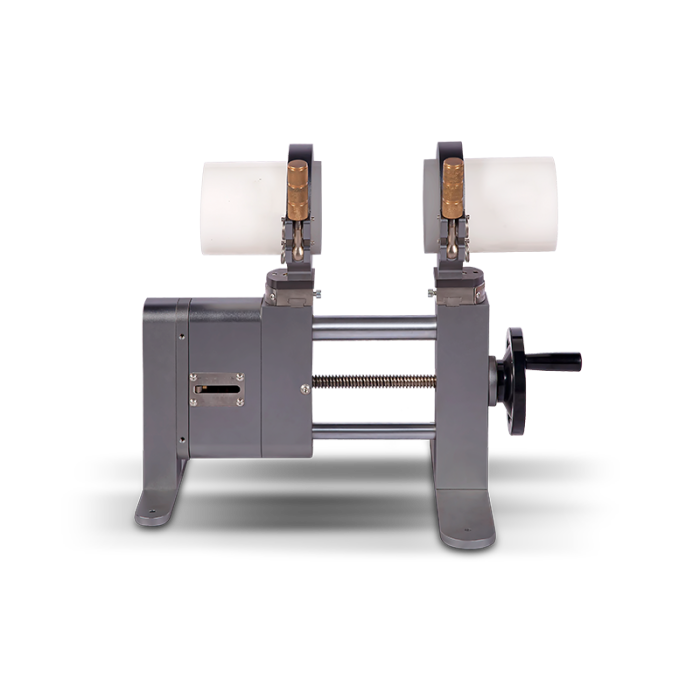

Nano Fitting Fabrication Machine FUSENANO110, 20MM-110MM (1/2"IPS - 3" DIPS)
Nano Fitting Fabrication Machine FUSENANO110, 20MM-110MM (1/2"IPS - 3" DIPS)
| Categories | Fitting Fabrication Machines |
|---|---|
| Brand | RIYANG |
| Model | FUSENANO110 |
| Certificate | CE, ISO9001 |
| Packing Material | Plywood Box |
| MOQ | 1set |
| Working Range in mm | 20mm - 110mm |
| Working Range in Inch | 1/2"IPS - 3" DIPS |
| Fabricated Fitting Type | Bend |
| Weldable Materials | HDPE, PP, PVDF etc. |
| FOB port | Shanghai |
| Terms of Payment | L/C, Western Union, T/T, Paypal |
| Download |  |
| Update Time | Jun 19,2025 |
Detail Information
Nano Fitting Fabrication Machine FUSENANO110 20MM-110MM
FUSENANO 110 is a compact and professional butt-welding solution for PE, PP, and PVDF pipes and fittings, covering all pressure classes from O.D. 20 mm to 110 mm. Designed for maximum versatility, it offers a user-friendly, portable system that performs seamlessly both on construction sites and in workshop environments. With its unique handling and smart engineering, FUSENANO 110 delivers the reliability and flexibility that modern pipe welding professionals demand — in a compact footprint that fits wherever you need it.
|
Product Details
|
|||
|
Elbow
|
OD 20mm - 110mm ( 0º - 30º )
|
Weldable Materials
|
HDPE, PP, PVDF, PPR etc
|
Maximum Force | 900 N | Inserts Type | Single Layer |
Rated Power | 1850 W | Power Supply | 220V, 50HZ |
Total Packages | 1 Box | Net Weight | 25 kgs, Excluding inserts |
• The machine's chassis features horizontally adjustable clamps, allowing precise positioning of pipes in both sides before welding—a critical advantage for achieving optimal results in segmented bend welding applications.
• The upper and lower clamps, as well as the installation of the reducing inserts, are secured using locking pins, ensuring a simple and quick setup. This design is especially convenient during overhead welding operations, making clamps assembly and adjustment much easier when the machine is suspended.
• The rotating clamps can be precisely locked at angles ranging from 0°to 15°for both butt and miter welds, enabling the fabrication of bends up to a maximum of 30°.
• Powered by a Makita drill, the trimmer offers horizontal adjustability and double-sided blades for long-lasting performance and easy upkeep.
• The PTFE-coated heating plate features electronic temperature control and horizontal adjustability for precise, consistent welding.
- Imperial Reduction Inserts
- Stub End Device
- Narrow Clamps
